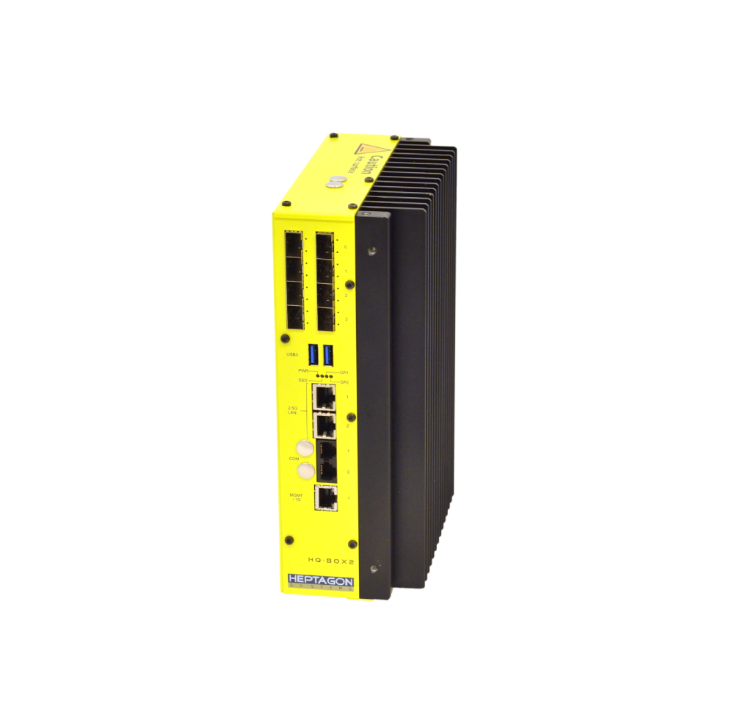

Name: HQ Box 2 Edge
Brand: Heptagon
SKU: 1644
Availability: InStock

Description

HQ-Box2 Model selection

Model	PCIe G4 Slot	PCIe G3 Slot	M.2 SSD	U.3^* / U.2 2.5″ Bay	2.5G / GbE	SFP+	BMC	Wi-Fi / 5G
Bare	–	–	1x NVMe G3 1x SATA	–	2/1	4+4	AST2600	M.2-B W.Sim M.2-E
2X	1	1	1x NVMe G3 1x SATA	–	2/1	4+4	AST2600	M.2-B W.Sim M.2-E
Storage-M / M6	–	–	4x NVMe G4 1x NVMe G3 1x SATA M6: +2x NVMe G3	–	2/1	4+4	AST2600	M.2-B W.Sim M.2-E
Combo-S	–	1	1x NVMe G3 1x SATA	4x U.3/U.2 hot-swap	2/1	4+4	AST2600	M.2-B W.Sim M.2-E
AI	1		2x NVMe G4 3x NVMe G3 1x SATA	–	2/1	4+4	AST2600	M.2-B W.Sim M.2-E

* 2.5″ U.3 drives are PCIe Gen 4, supporting 15mm/17mm thick drives. U.2 drives are also supported.

Intel Xeon D-1700 / Xeon D-1800 CPU Selection

The following table describes the main characteristics of the Intel Xeon D-1700 and Xeon D-1800 CPU you may use with the HQ-Box2 edge server.

CPU number	# of Cores	Max. Turbo Freq.	Base Freq.	Cache	Ethernet / QAT	Extended Temp.	TDP	Mem¹ Frequency MHz	Max Channels	Max Capacity
10-Cores
D-1747NTE	10	3.5GHz	2.5GHz	15MB	100G / 20G	Yes	80W	2933	3	384GB
D-1748TE	10	3.4GHz	2.3GHz	15MB	50G / –	Yes	65W	2400	2	256GB
D-1746TER	10	3.1GHz	2.0GHz	15MB	100G / –	Yes	67W	2667	3	384GB
D-1848TER	10	3.1GHz	2.0GHz	15MB	100G / –	Yes	57W	2667	2	256GB
D-1844NT	10	3.1GHz	2.0GHz	15MB	50G / 20G	–	55W	2667	2	256GB
D-1846	10	3.1GHz	2.0GHz	15MB	– / –	–	55W	2933	2	256GB
8-Cores
D-1739	8	3.5GHz	3.0GHz	15MB	– / –	–	83W	2933	3	384GB
D-1736NT	8	3.5GHz	3.0GHz	15MB	50G / 20G	–	67W	2667	2	256GB
D-1735TR	8	3.4GHz	2.2GHz	15MB	50G / –	–	59W	2933	3	384GB
D-1733NT	8	3.1GHz	2.0GHz	15MB	50G / 20G	–	53W	2400	2	256GB
D-1732TE	8	3.0GHz	1.9GHz	15MB	50G / –	Yes	52W	2667	3	384GB
D-1834	8	2.9GHz	1.8GHz	15MB	– / –	–	42W	2667	2	256GB
6-Cores
D-1726	6	3.4GHz	2.9GHz	10MB	– /-	–	70W	2933	3	384GB
D-1722NE	6	2.7GHz	1.7GHz	10MB	– /10G	Yes	36W	2400	2	256GB
D-1823NT	6	3.5GHz	2.8GHz	10MB	50G / 10G	–	55W	2400	2	256GB
4-Cores
D-1715TER	4	3.5GHz	2.4GHz	10MB	50G /-	Yes	50W	2667	3	384GB
D-1718T	4	3.5GHz	2.6GHz	10MB	50G /-	–	46W	2933	2	256GB
D-1713NT	4	3.5GHz	2.2GHz	10MB	50G /10G	–	45W	2667	2	256GB
D-1713NTE	4	3.3GHz	2.2GHz	10MB	50G /10G	Yes	45W	2400	2	256GB
D-1712TR	4	3.1GHz	2.0GHz	10MB	50G /-	–	40W	2400	3	384GB
D-1813NT	4	2.4GHz	2.2GHz	10MB	50G /10G	–	42W	2400	2	256GB

¹Memory is DDR4 RDIMM (with ECC)

Minimum order may apply when ordering a CPU which is not in stock.

Ethernet ports per Intel Xeon D-1700 / Xeon D-1800 CPU

Intel has implemented a sophisticated Network Accelerator Complex (NAC) into the Xeon D-1700 / D-1800 series. However not all CPU’s share the same networking capabilities. The below tables highlights the Ethernet capabilities of each processor. The HQ-Box2 edge server fully supports all of the the Intel defined configurations.

100G capable CPU’s

# of Ports	QUAD 0				QUAD 1
# of Ports	P0	P1	P2	P3	P4	P5	P6	P7
8	10G	10G	10G	10G	10G	10G	10G	10G
6	25G	25G	–	–	10G	10G	10G	10G
4	25G	25G	25G	25G	–	–	–	–

100G NAC CPU’s: D-1747NTE, 1746TER, D-1848TER.

Connector type: SFP28 (25G), SFP+ (10G)

50G capable CPU’s

# of Ports	QUAD 0				QUAD 1
# of Ports	P0	P1	P2	P3	P4	P5	P6	P7
8	10G	10G	10G	10G	1G	1G	1G	1G
5	10G	10G	10G	10G	10G	–	–	–
4	10G	10G	10G	10G	–	–	–	–
2	25G	–	25G	–	–	–	–	–

50G NAC CPU’s: D-1748TE,D-1736NT,D-1735TR,D-1733NT,D-1732TE,D-1715TER,D-1718T,D-1713NT,D-1713NTE,D-1712TR,D-1844NT,D-1823NT,D-1813NT

Connector type: SFP28 (25G), SFP+ (10G), SFP (1G)

Additional information

Model	Bare, 2X, Storage-M / M6, Combo-S, AI
CPU	Intel Xeon D-1700 – 10 Cores, Intel Xeon D-1700 – 8 Cores, Intel Xeon D-1700 – 6 Cores, Intel Xeon D-1700 – 4 Cores, Xeon D-1800 CPU Selection 10 Cores, Xeon D-1800 CPU Selection 8 Cores, Xeon D-1800 CPU Selection 6 Cores, Xeon D-1800 CPU Selection 4 Cores
CPU Architecture	Intel Xeon
CPU Cores	4 Core, 6 Core, 8 Core, 10 Core
Features	AI with HAILO, COM Ports RS-232 / RS-485, fanless, GPIO
Memory	RAM 1GB, RAM 2GB, RAM 4GB, RAM 8GB, RAM 16GB, RAM 32GB, RAM 64GB, RAM 128GB, RAM 384GB
