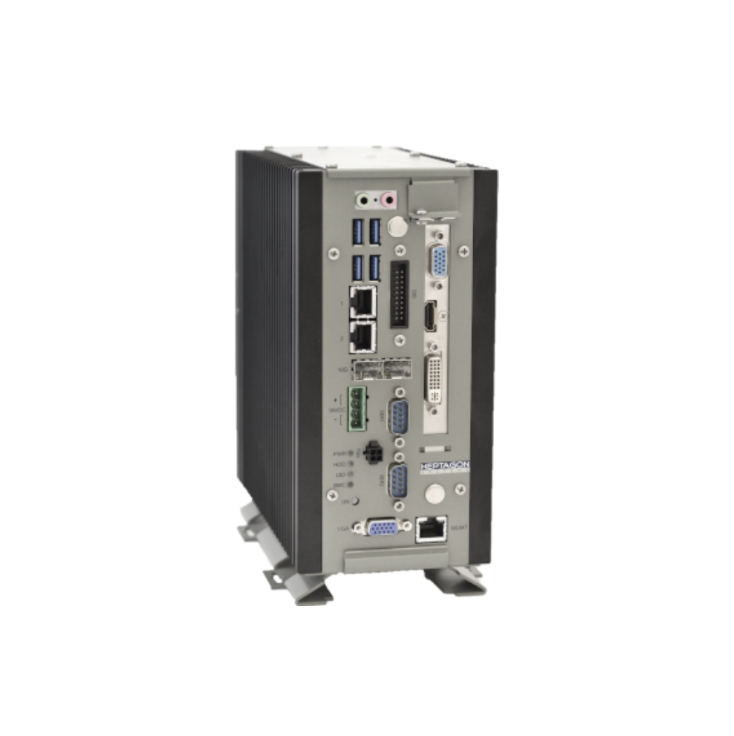

HQ Box

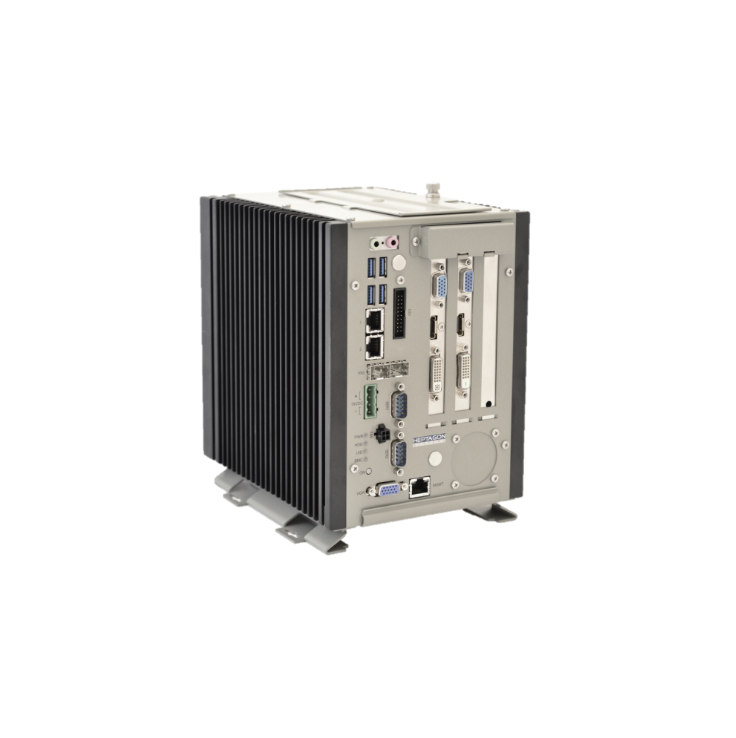

HQ Box - Image 2
HQ Box - Image 3

Please note that the HQ-Box series is a mature product and is currently available for ongoing projects only

  • Intel® Xeon® D-1500 CPU, 4-16 cores, 35-65W
  • Up to 128GB DRAM
  • 3x M.2 SSD slots
  • Dual 10G SFP+, Dual 1GbE
  • Fanless cooling
  • Maintenance free
  • -30°C..+72°C operating temperature range
  • Aspeed AST2400 BMC (board management controller)
  • Plenty of storage and PCIe slot configuration options

This product is currently out of stock and unavailable.

SKU: N/A Category: Brand:

Description

Model U.2 * 2.5” bay M.2 SSD** PCIe slots PCIe slot Configuration GbE 10G SFP+ BMC Enclosure***
1F 0 3 1 x16 2 2 Yes Slim
Combo 2 3 1 x8 2 2 Yes Full
Storage/2 2 3 0 2 2 Yes Slim
2X 0 3 2 x8 + x8 2 2 Yes Full
3X 0 3 3 x8 + x4 +x4 2 2 Yes Full
Storage 4 3 0 2 2 Yes Full
Bare 0 3 0 2 2 Yes Slim

Additional information

Model

1F, Combo, Storage/2, 2X, 3X, Storage, Bare
CPU Architecture

Intel Xeon
CPU Cores

4 Core, 6 Core, 8 Core, 12 Core, 14 Core, 16 Core
Features

fanless
Memory

RAM 1GB, RAM 2GB, RAM 4GB, RAM 8GB, RAM 16GB, RAM 32GB, RAM 64GB, RAM 128GB
