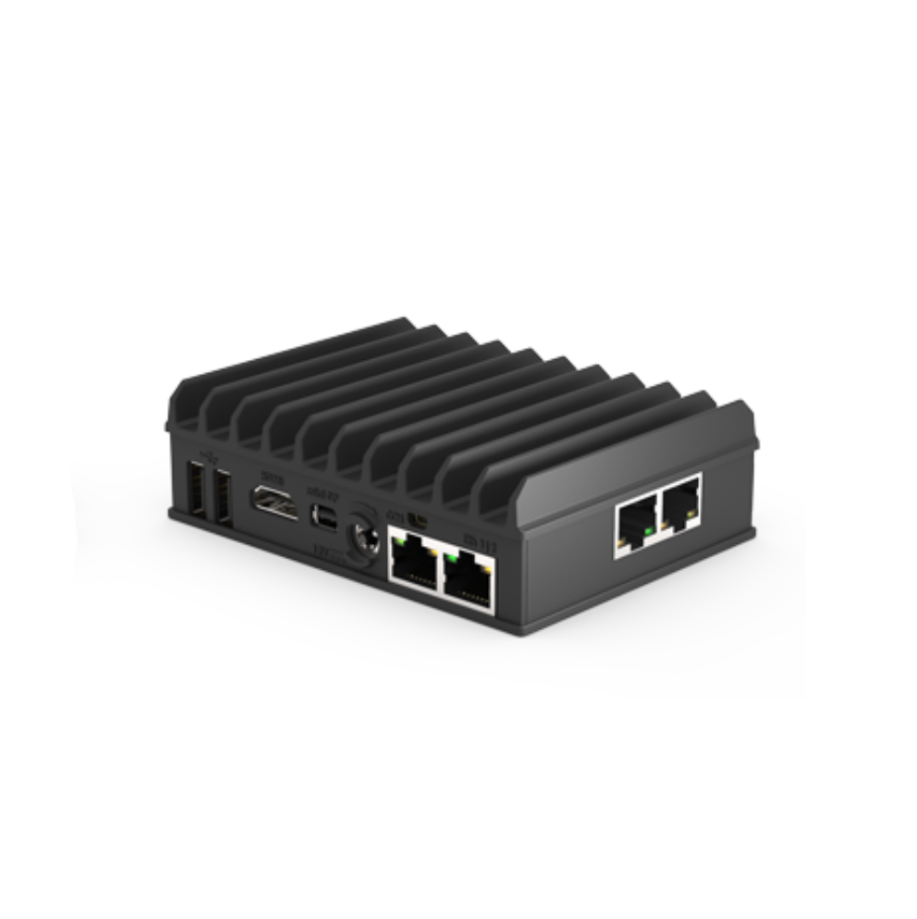

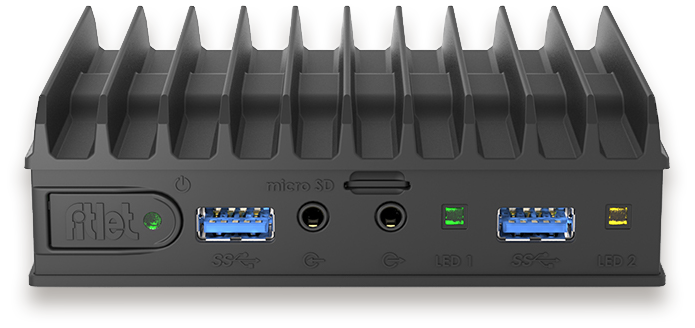

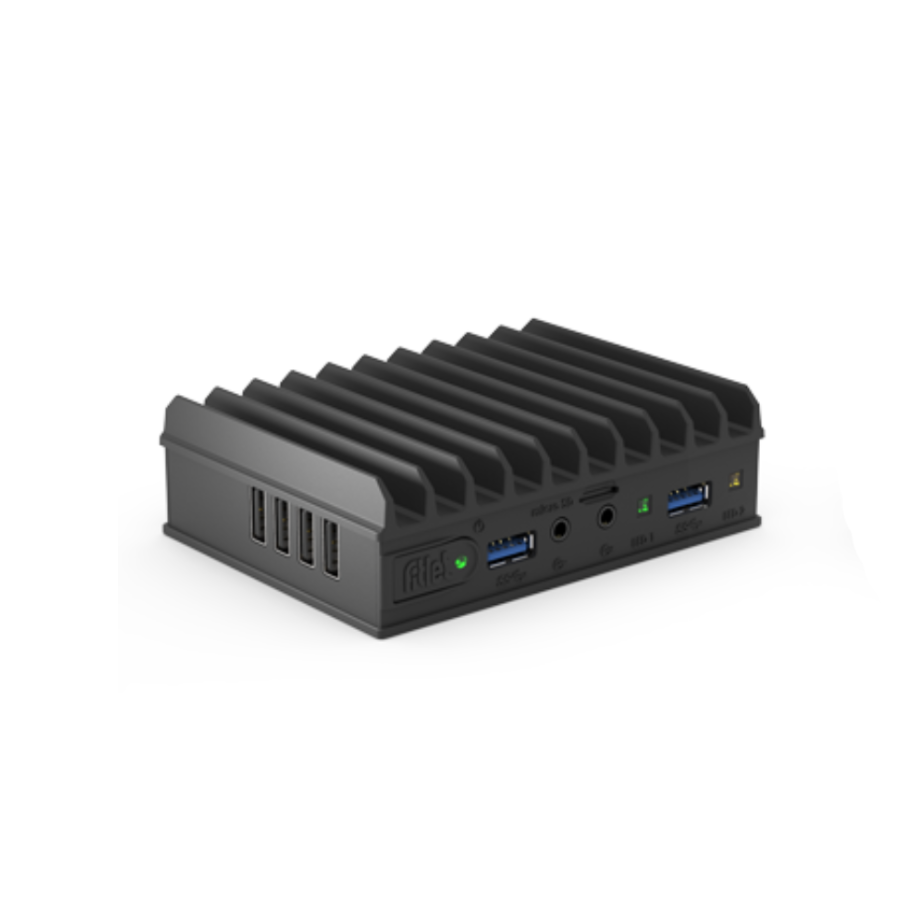

Name: Fitlet2
Brand: Compulab
SKU: 1610
Availability: InStock

Description

Configure the fitlet2 to suit your specific requirements and have it shipped ready-to-use.

A basic fitlet2 built-to-order device includes the following interfaces as standard:

4 x USB
2 x displays
2 x Ethernet ports
M.2 Key-M, E and B connectors (for storage, Wi-Fi, cell-modem and AI accelerator modules).
Also standard is Internal TPM 2.0 and 7V-20V DC input with Universal 12V AC wall-mount PSU

For special customizations or pre-installed Hailo-8 AI acceleration module, please contact us.

Additional information

CPU	Atom x7-E3950 [CE3950], Celeron J3455 [CJ3455], Atom x5-E3930 [CE3930]
RAM	Not installed, 2GB DDR3 SODIMM [D2], 4x DDR3 SODIMM [D4], 8GB DDR3 SODIMM [D8], 16GB DDR3 SODIMM [D16]
2.5" HDD / M.2 SATA Storage	Not installed, M.2 SATA 32 GB [M32S], M.2 SATA 64 GB [M64S], M.2 SATA 120 GB [M120S], M.2 SATA 250 GB [M250S], M.2 SATA 512 GB [M512S], 2.5″ HDD/SSD adapter [HD0], 2.5″ HDD 1 TB [HD1T], 2.5″ SSD 2 TB [HS2T]
Facet Cards	No FACET CARD selected, FC-PCI M.2 E-Key + mini-PCIe [FPCI], FC-CEM M.2 E-Key + M.2 B-Key [FCEM], FC-M2LAN 2x Gbit Ethernet [FLAN], FC-POED Gbit Ethernet with PoE Device [FPOED], FC-OPLN 1x SFP+ Gbit Ethernet optical [FOPLN], FC-USB 4x USB 2.0 [FUSB], FC-SCG serial, CANbus and GPIO [FSCG], FC-SCGS serial only [FSCGS]
WiFi/BT module	Not installed, 802.11ac + BT (Intel 8260AC) [WI8260], Antennas and panel (WiFi module not included) [W0]
DC input	Standard DC input range 7V – 20V, Extended DC input range 9V – 36V [P36]
Temperature range	Commercial temperature range 0°C to 45°C, Extended temperature range -20°C to 70°C [TE], Industrial temperature range -40°C to 70°C [TI]
CPU Architecture	Intel Apollo, Intel Atom, Intel Celeron
CPU Cores	2 Core, 4 Core
Features	COM Ports RS-232 / RS-485, fanless, GPIO
Memory	RAM 1GB, RAM 2GB, RAM 4GB, RAM 8GB, RAM 16GB
